Light Wing Series Solar Street Light
Light Wing Series Solar Street Light
The Light Wing Series Solar Street Light is designed for outdoor road lighting projects that require both practical illumination and a clean modern appearance. Its slim linear lamp head creates a distinctive wing-like profile, making it suitable for roads, parks, residential communities, campuses, scenic areas and commercial outdoor spaces.
With separate solar panel configuration, high-efficiency LED lighting, durable aluminum housing and LiFePO4 battery options, this solar street light provides flexible project matching for different road widths, pole heights and lighting requirements.
Product Specifications
Product Name:Light Wing Series Solar Street Light
Chinese Name:光之翼
Category:Split Solar Street Light
Installation Height:6–12m
LED Power:30W–200W
LED Chips:5050 LED chips
Luminous Efficiency:180LM/W
Color Temperature:6000K–6500K
Average Lifespan:>50,000 hours
Solar Panel:6V–18V / 60W–360W
Battery:LiFePO4 battery pack, 3.2V–25.6V / 60AH–300AH
Anti-Corrosion Performance:500-hour neutral salt spray test
Service Life:>20 years
Rainy Day Backup:2–5 rainy days
Lighting Mode:All-year lighting, configuration adjustable by project
Recommended Pole Height:6–12m

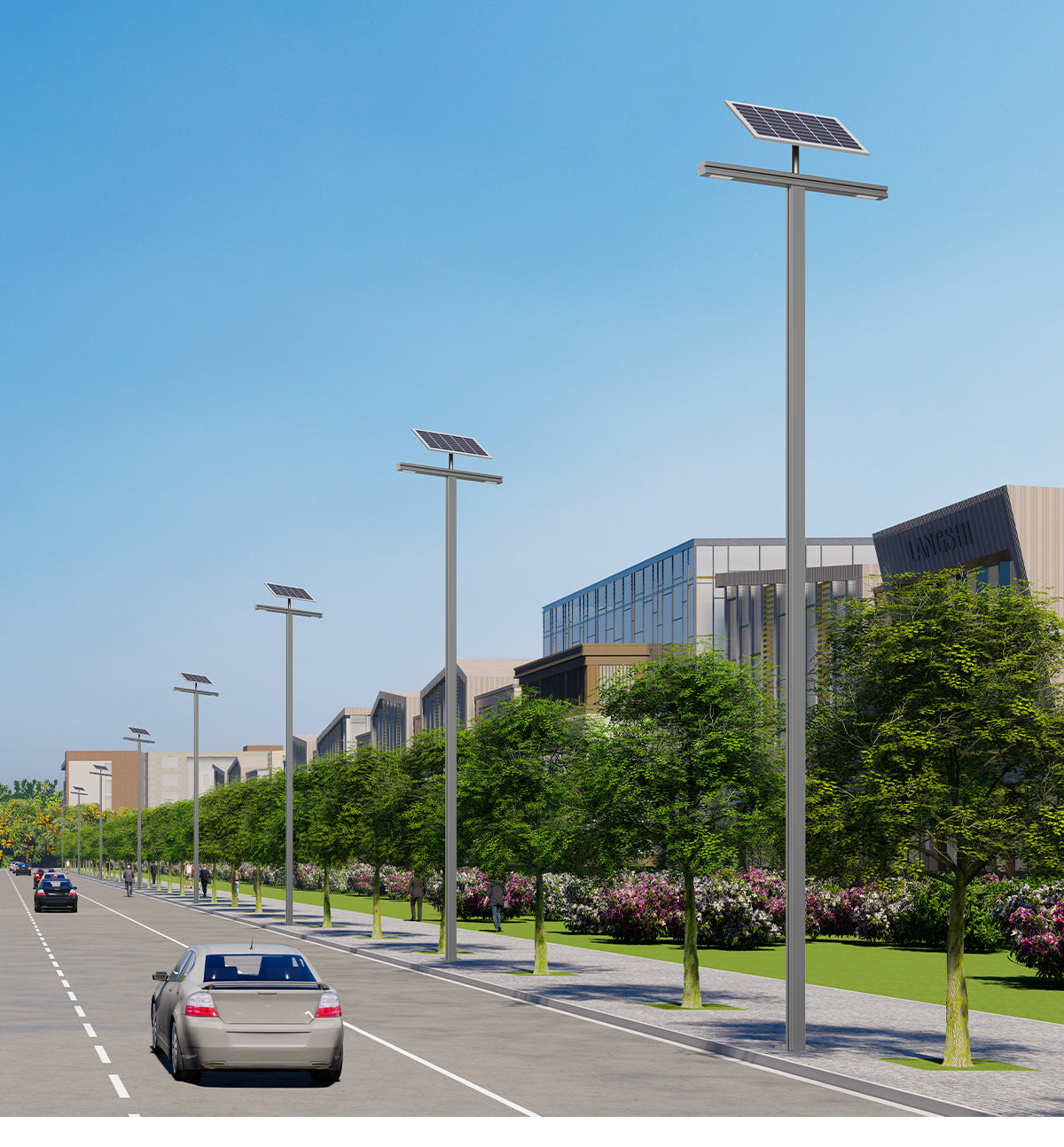

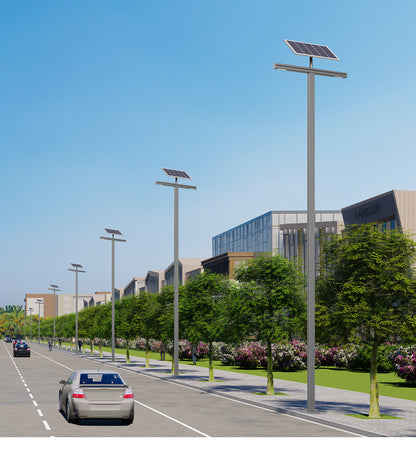

Application:Roads, parks, communities, campuses, rural roads, scenic areas and commercial outdoor lighting projects

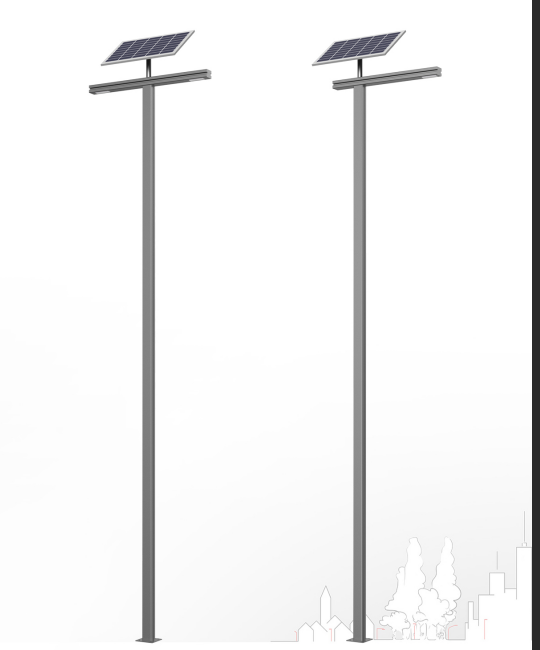

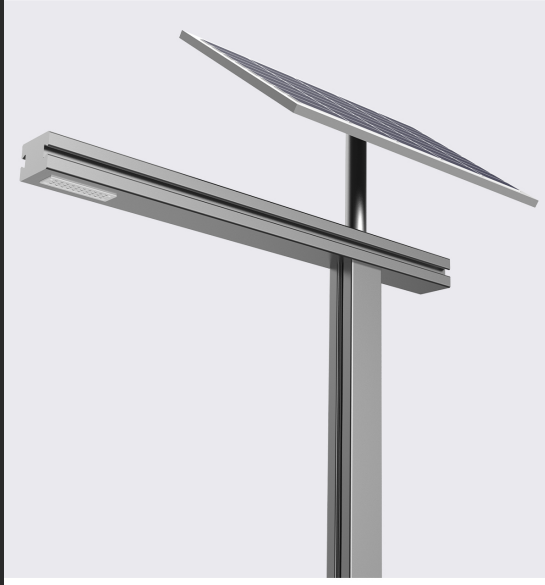

Slim Wing-Like Linear Design
The Light Wing Series uses a long and clean lamp head structure, giving the product a modern road lighting appearance. When installed in rows, the lights create a neat and consistent visual effect along the road.

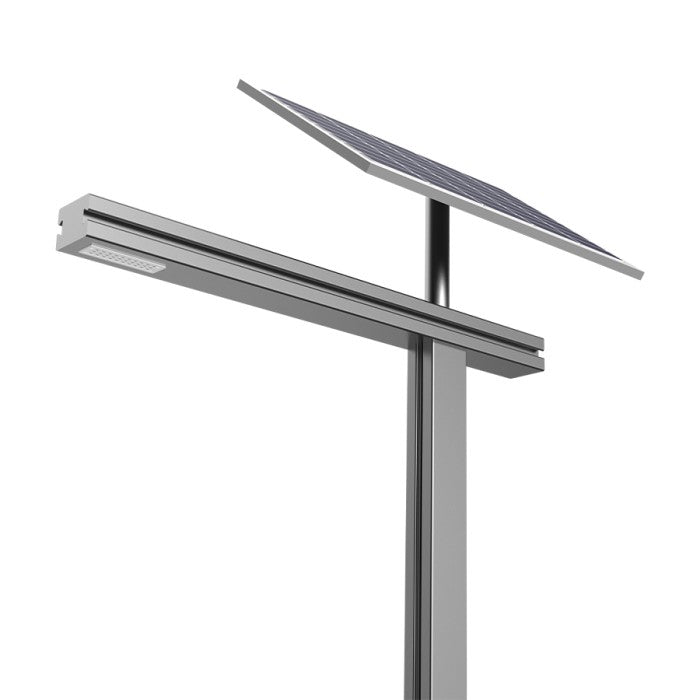

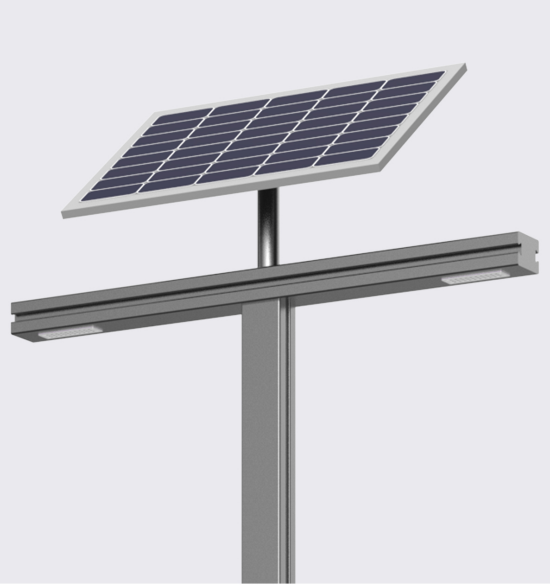

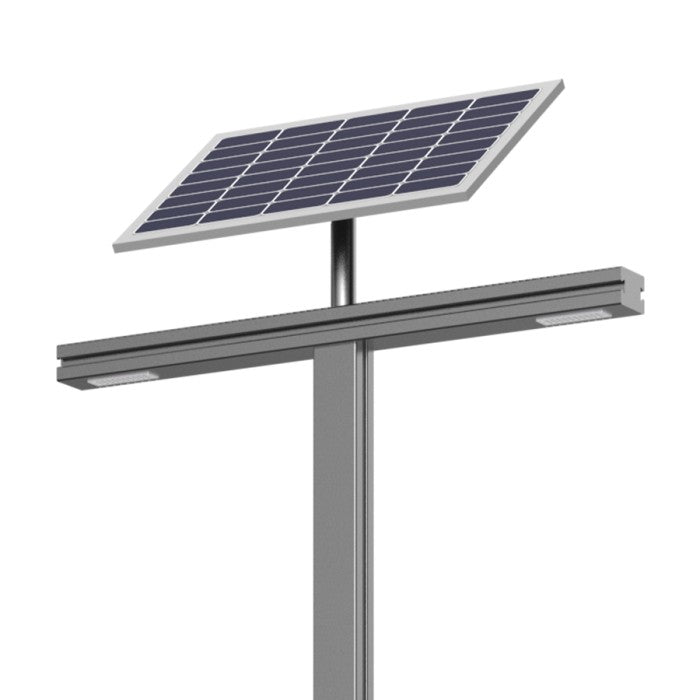

Split Solar Street Light Structure
The solar panel and LED lamp head are arranged separately, allowing better solar charging angle and more flexible lighting direction for road and outdoor area projects.
Wide Power Range for Project Matching
With LED power from 30W to 200W and solar panel options from 60W to 360W, this series can be configured for different road widths, installation heights and lighting standards.

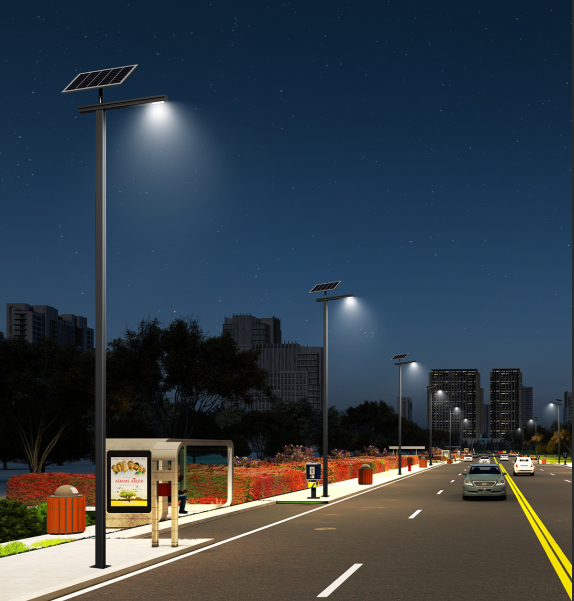

High-Efficiency LED Performance
The lamp uses 5050 LED chips with up to 180LM/W luminous efficiency, helping provide bright and efficient illumination for outdoor roads and public areas.

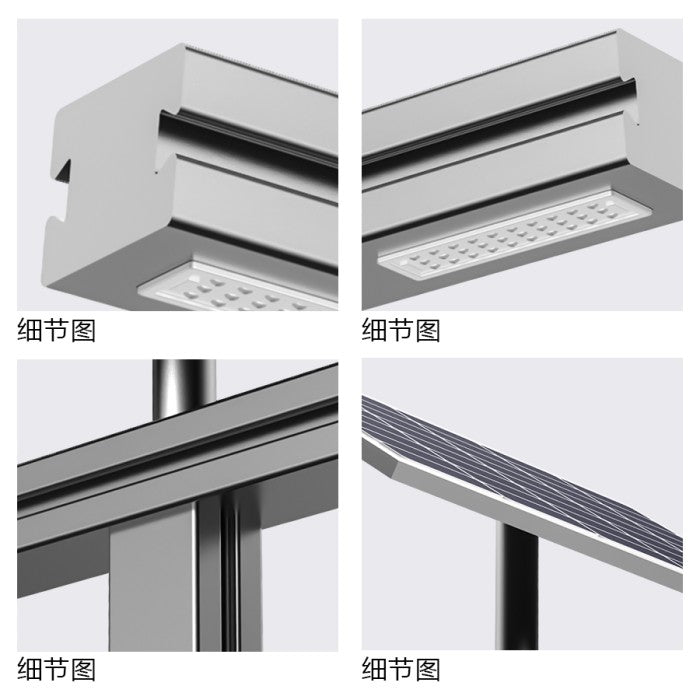

Durable Outdoor Materials
The lamp body uses die-cast aluminum material with surface treatment, while the light cover uses PC material. This structure supports outdoor durability, heat resistance, anti-aging performance and UV resistance.
Strong Anti-Corrosion Performance
The product supports 500-hour neutral salt spray corrosion resistance testing, making it suitable for humid, coastal, rainy and high-temperature outdoor environments.
LiFePO4 Battery System
The Light Wing Series uses LiFePO4 battery options from 3.2V to 25.6V and 60AH to 300AH, offering stable energy storage and long service performance for solar lighting projects.
Why Choose Light Wing Series Solar Street Light?
The Light Wing Series is suitable for customers who need a solar street light with a stronger design appearance than standard road lights. Its slim linear structure helps improve the visual quality of outdoor lighting projects while maintaining the practical performance required for road illumination.
For projects in Southeast Asia, the Middle East, Central Asia and Africa, the series can be configured according to local sunshine conditions, road width, installation height and required backup days.
2–5 Rainy Days Backup
The system can support 2–5 rainy days of operation depending on configuration and local sunlight conditions, helping improve reliability in outdoor lighting projects.

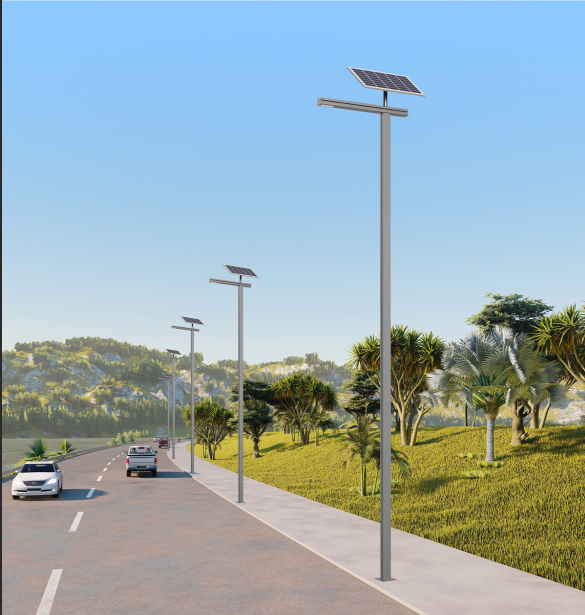

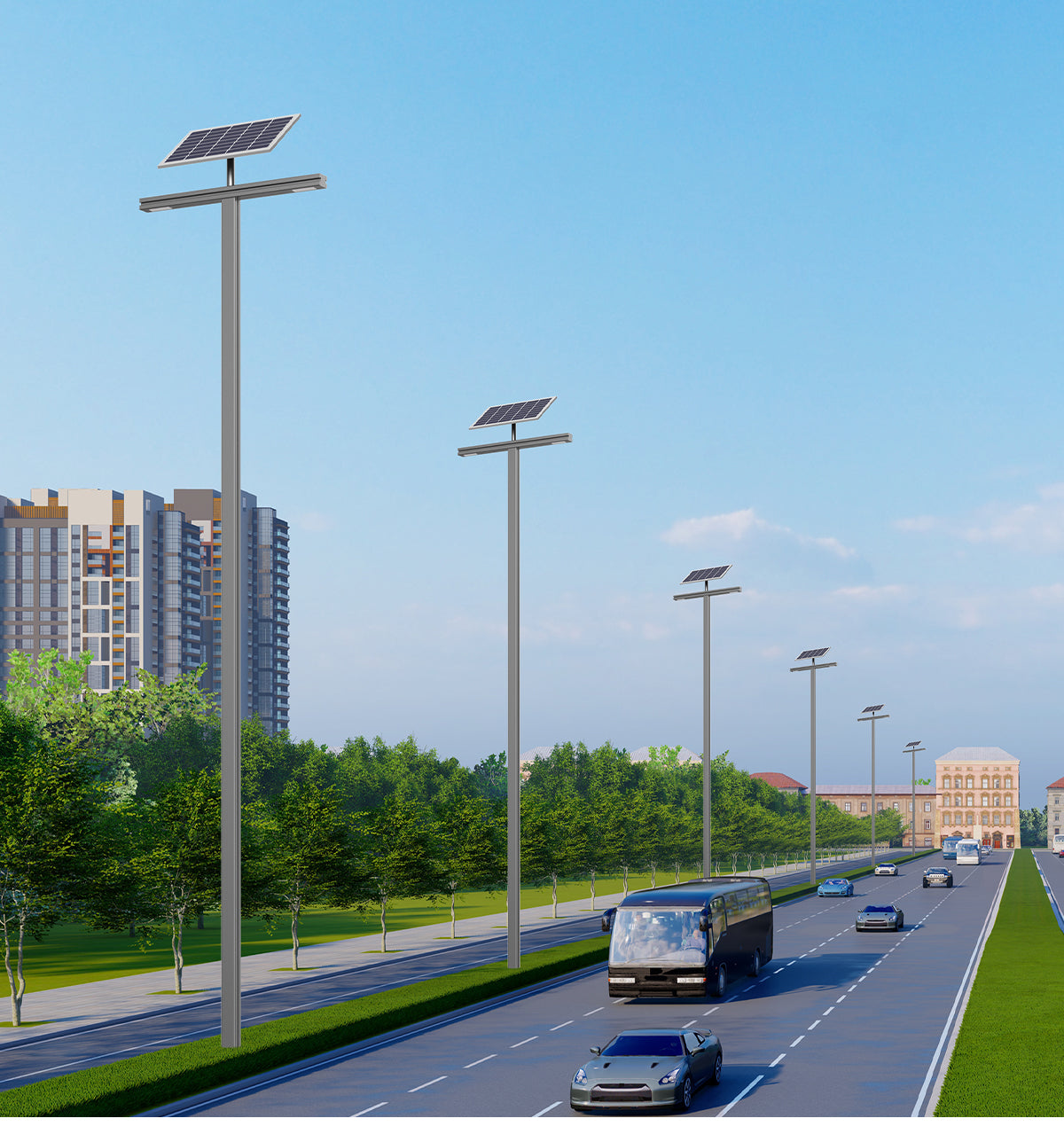

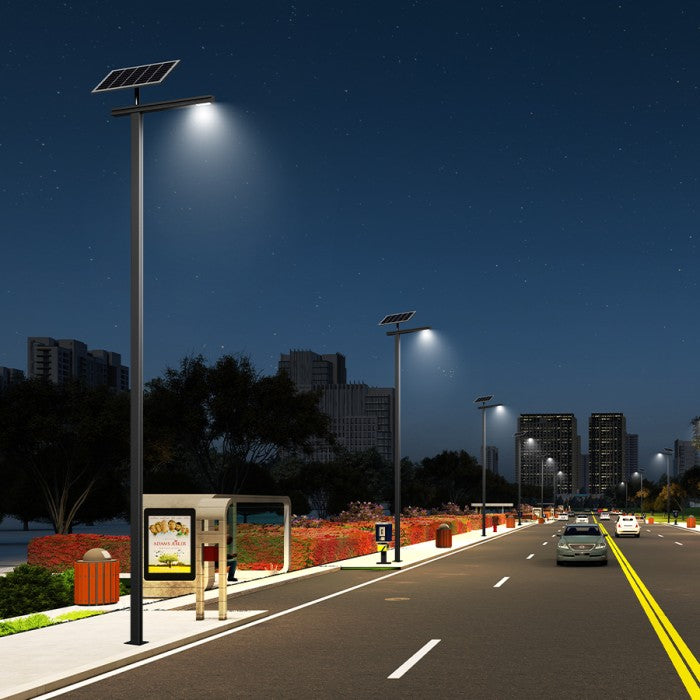

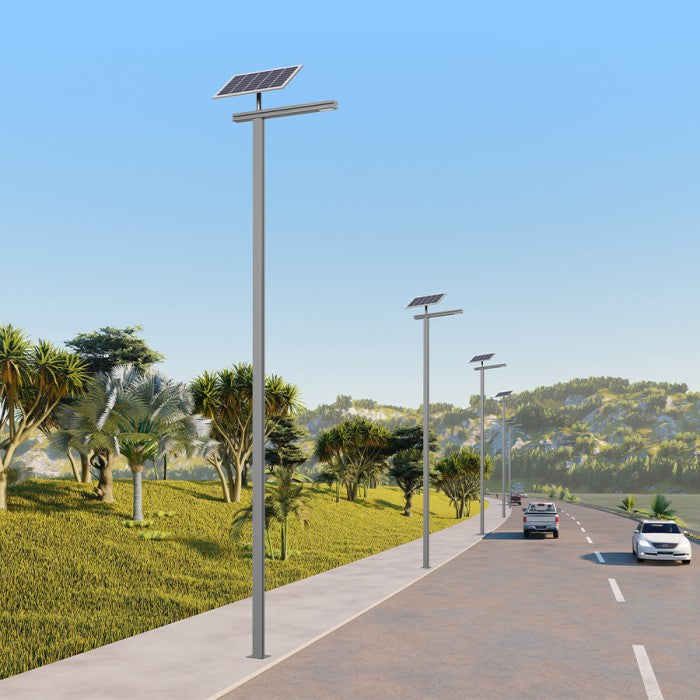

Recommended Applications
Community roads
Park roads
Campus roads
Residential areas
Rural roads
Scenic area roads
Commercial outdoor roads
Industrial park roads
Villa area roads
Landscape road lighting
